Case Study

NZ Bus were renovating one of their busy downtown bus depots, which included the upgrading of their bulk diesel storage tank. Due to the neighbouring developments and wanting to maximize the room they had available on the site; the old tank that was currently on site did not comply to the new proposed location (close to the boundary) and therefore Fuelchief were approached.

In the early planning stages, the consultants had questions around the benefits of the SuperVault tank. Our team worked with them to meet required specifications including capacity, location, applicable regulations and layout integrations.

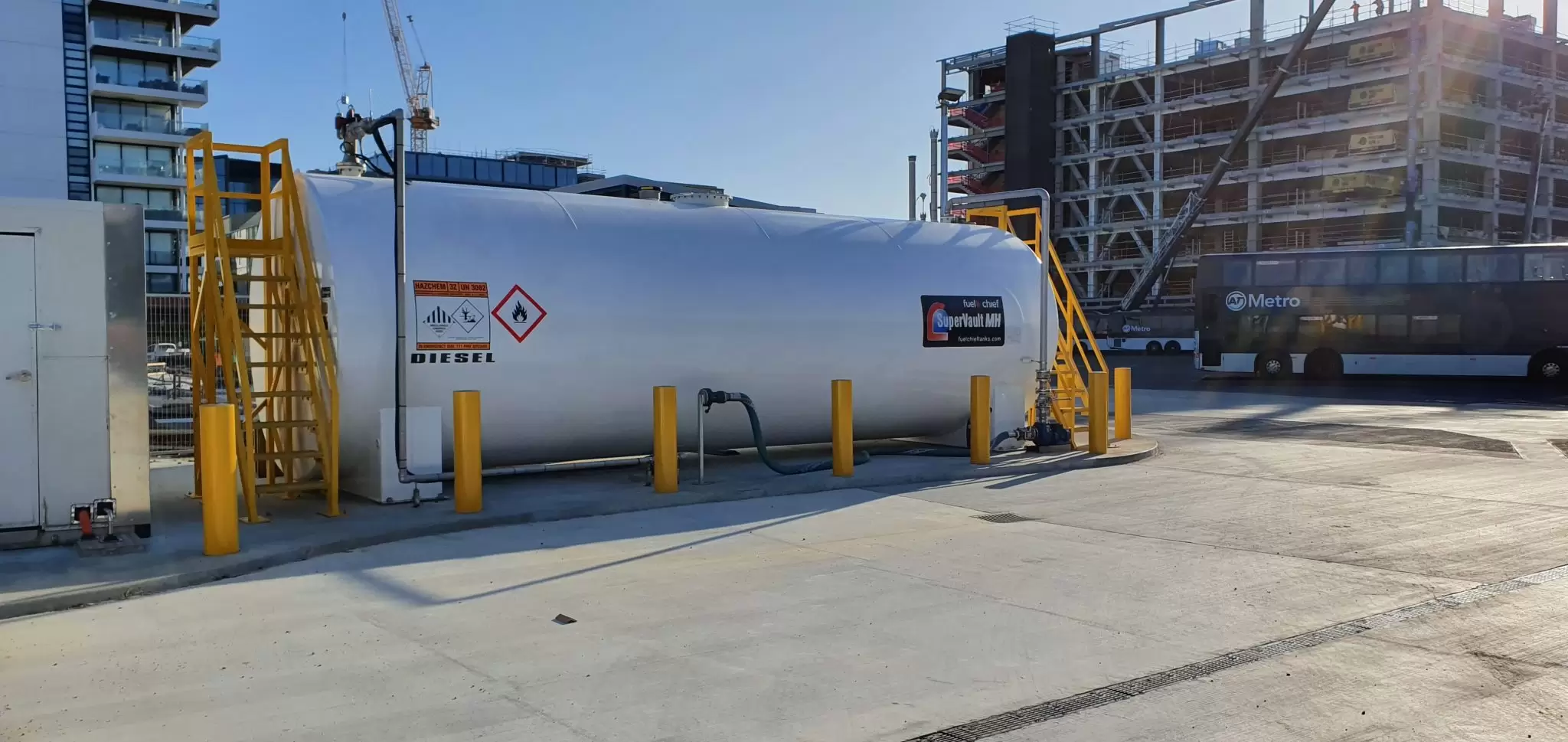

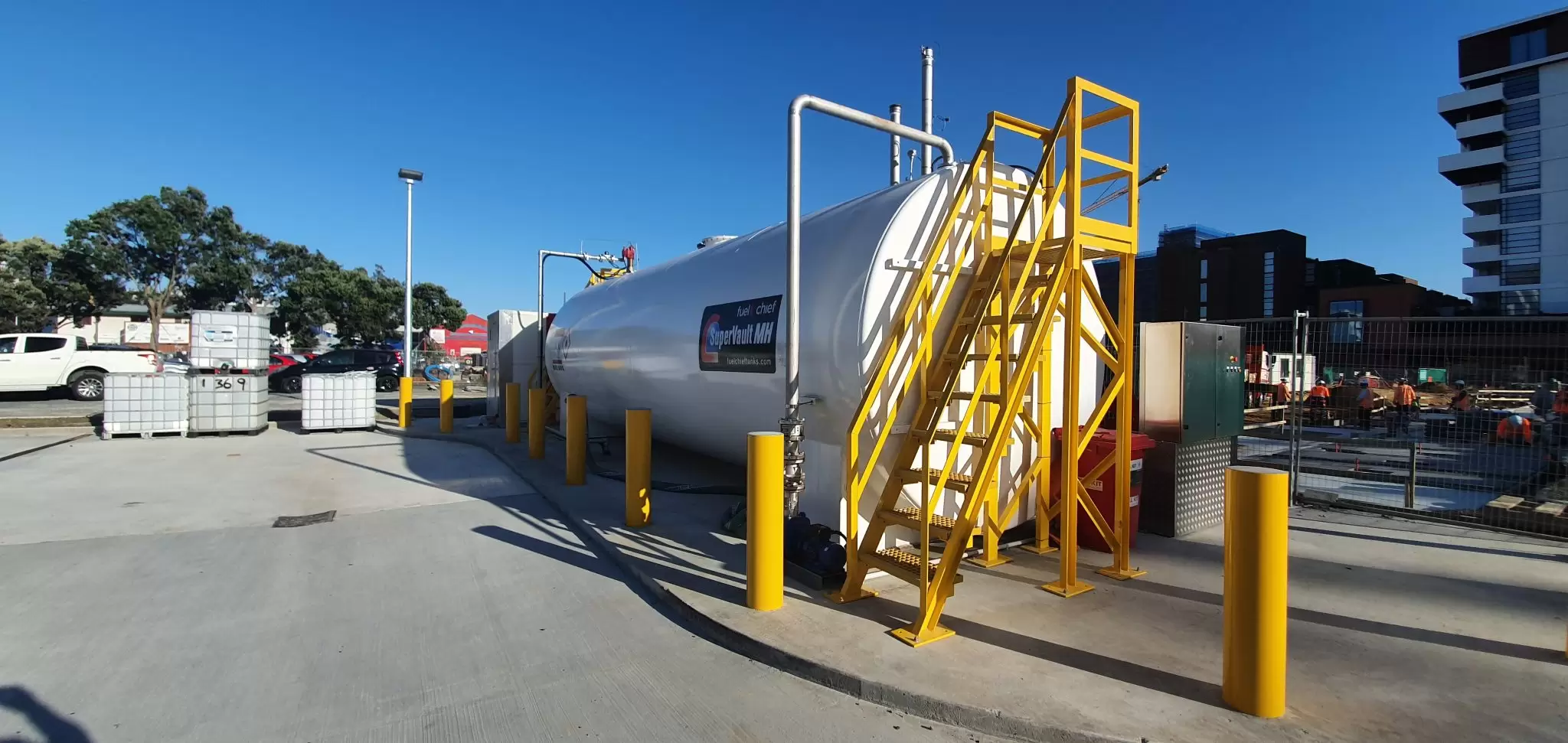

Fuelchief provided NZ Bus with a SuperVault Cylindrical 45,000L tank. This tank is 4-hour fire rated with an SwRI 95-03 rating. This also met with WorkSafe’s compliances too which made it the most effective solution. The additional features that were custom for the tank also allowed us the ability to reduce the isolation distances to the boundary by half (as per AS1940).

This tank was best suited for the project due to its certification to SwRI 95-03. For this project it meant the separation distances to a public and protected place could be halved and allowed for better utilisation of the site.

In addition to the above, with the feature of a certified impact rating, the SuperVault gave the customer added peace of mind on a site with a lot of heavy vehicle movements.

The SuperVault was supplied to Carlyon Civil, who were contracted to do the fuel installation including the tank, bowsers etc. The SuperVault was delivered to site on schedule to allow streamline installation immediately and contract completion.
