Fuelchief
SVR Series 499L - 10,000L

SuperVault Rectangular

SuperVault Rectangular

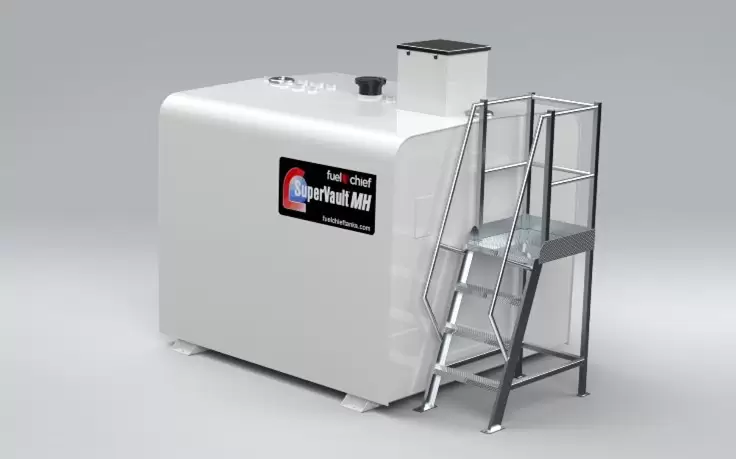

The SuperVault Rectangular is a high-specification tank which is certified to a true 4-hour fire-rating. Rectangular tanks are driven by site efficiency. Built to maximise footprint and integrate into tight layouts like plantrooms, yards, and boundary lines, the SuperVault Rectangular is ideal for space-constrained projects where layout comes first.

SVR Series 499L - 10,000L

  • Environmentally superior: due to the secondarily contained primary tank
  • Multi Hazard Tested: 4-hour fire exposure rating, hose-stream resistant, ballistics tested, heavy vehicle impact tested (FRL 240|240|240 as per AS1940)
  • Compliant: with international tank approvals, SwRI 95-03, SwRI 93-01, UL2085, UL142
  • Ventilation: emergency venting for primary and secondary containment
  • Clean fuel: superior thermal efficiency minimising evaporation and degradation of fuel quality
  • Interstitial monitoring: capability
  • Maximum protection: a 3-coat 15+ year industrial painting system for longevity
  • Multiple storage uses: available with multiple compartments for multiple fuel storage
  • Stores many liquids: compatible with gasoline, diesel, fuel oil, ethanol, methanol and other chemicals
  • Can be lined: for special applications, such as jet fuel or potable water storage
  • Diversified material options: material of construction may be carbon or stainless steel
  • Easily transportable: relatively light-weight and can be shipped anywhere in the world (empty). Some model sizing allows for shipping in containers reducing global freight costs
  • Seismic rating: certified to Importance Level 4 as per AS1170
  • Rectangular design: available in rectangular constructions up to 10,000 litres
  • Warranty: 30 years
Request a quote
SVR Series 499L - 10,000L
SVR Series 499L - 10,000L
SVR Series 499L - 10,000L
SVR Series 499L - 10,000L
SuperVault Rectangular
SVR Series 499L - 10,000L
SVR Series 499L - 10,000L
SVR Series 499L - 10,000L

THE SUPERVAULT RECTANGULAR SVR SERIES

Industries across the world need to ensure they are compliant when it comes to storing hazardous liquids such as petrol, diesel or chemicals. Fuelchief take the hassle out of this by engineering a compliant customised fuel tank called the SuperVault®.

The SuperVault Rectangular is a high-specification tank which is certified to a true 4-hour fire-rating and is recommended due to its fire protective safety for commercial sectors. The SuperVault tank offers elite fire-rated, bullet-proof, impact-resistant technology which makes it the safest and most durable tank in the world.

This engineered fuel tank is 4-hour fire-rated and is recommended due to its fire protective safety for commercial sectors. The SuperVault® tank offers elite fire-rated, bullet-proof, impact-resistant technology and has been designed, fabricated and tested in accordance with SwRI 95-03 which makes it the safest and most durable tank in the world. In many circumstances where diesel or petrol needs to be stored in commercial buildings, the SuperVault® is the only permitted tank. The SuperVault has been engineered to withstand conditions from the sub-zero temperature of the Arctic to the blistering heat of the desert. No other fuel storage system in the world can provide a higher level of certified fire protection, insulation, and fuel security than a Fuelchief SuperVault®

SVR Series 499L - 10,000L

Styles and sizes

The world’s most secure 4-hour fire-rated fuel tank for emergency generator systems

The SuperVault tank offers elite fire-rated, bullet-proof, impact-resistant technology which makes it the safest and most durable tank in the world and can take the weight of the heaviest of generators.

Tanks that don’t match site constraints create problems during installation. Access is tight, connections don’t line up, and rework follows. Fuelchief builds to the coordinated design, checking dimensions, connections, and interfaces so the system arrives ready to place, connect, and install without modification.

ModelDescriptionCapacity (litres)Width (mm)Length (mm)Height (mm)Weight (empty kg)
SVR-499SuperVault Rectangular 4 hour fire rated tank4991100143212721497
SVR-1000SuperVault Rectangular 4 hour fire rated tank1,0001100165017452150
SVR-1200SuperVault Rectangular 4 hour fire rated tank1,2001100188717452198
SVR-2000SuperVault Rectangular 4 hour fire rated tank2,0001100225021513046
SVR-3000SuperVault Rectangular 4 hour fire rated tank3,0001474225021293452
SVR-4000SuperVault Rectangular 4 hour fire rated tank4,0002150193420654289
SVR-4999SuperVault Rectangular 4 hour fire rated tank4,9992150232620654544
SVR-6000SuperVault Rectangular 4 hour fire rated tank6,0002150272420654742
SVR-7500SuperVault Rectangular 4 hour fire rated tank7,5002150331320655850
SVR-10000SuperVault Rectangular 4 hour fire rated tank10,0002150397522207403
SVR-10000SSuperVault Rectangular 4 hour fire rated tank10,0002150595016628559

Downloads

PDF Sheets - click to open in a new tab

Request a quote

Case Studies

View all

Higgins Group Case Study

The SuperVault solution provided a certified compliant tank for the Test Certifier to sign off on without any issues.

Nelson City Council

A precision placed series of SuperVault’s measured and constructed to the millimetre for the allocated space available. The tanks have been functioning successfully for the plant.

RD Petroleum Aviation Fuel Upgrade at Franz Josef Glacier

Replacing five ageing tanks with one, RD Petroleum needed a 60,000L aviation fuel tank transported clear across New Zealand to Franz Josef Glacier. Here's how a custom SuperVault made the journey and now keeps helicopter tour operators refuelled on-site.

Powerco

Fuelchief teamed up with Terra Cat to provide a Fuelchief DCD100 diesel fuel tank to Powerco for critical power backup.

Relocatable SuperVault For Client

See how our SuperVault was the ideal solution because of it's relocatable design and compliance that it proved to be a real asset.

University Of Canterbury

Our latest SuperVault case study on a how our 4-hour fire rated tank replaced an underground fuel tank for the University.

Sandspit Marina

Fuelchief supplies tank to Sandspit Marina, view the latest results of the transaction and why the manager is looking for another tank from us.

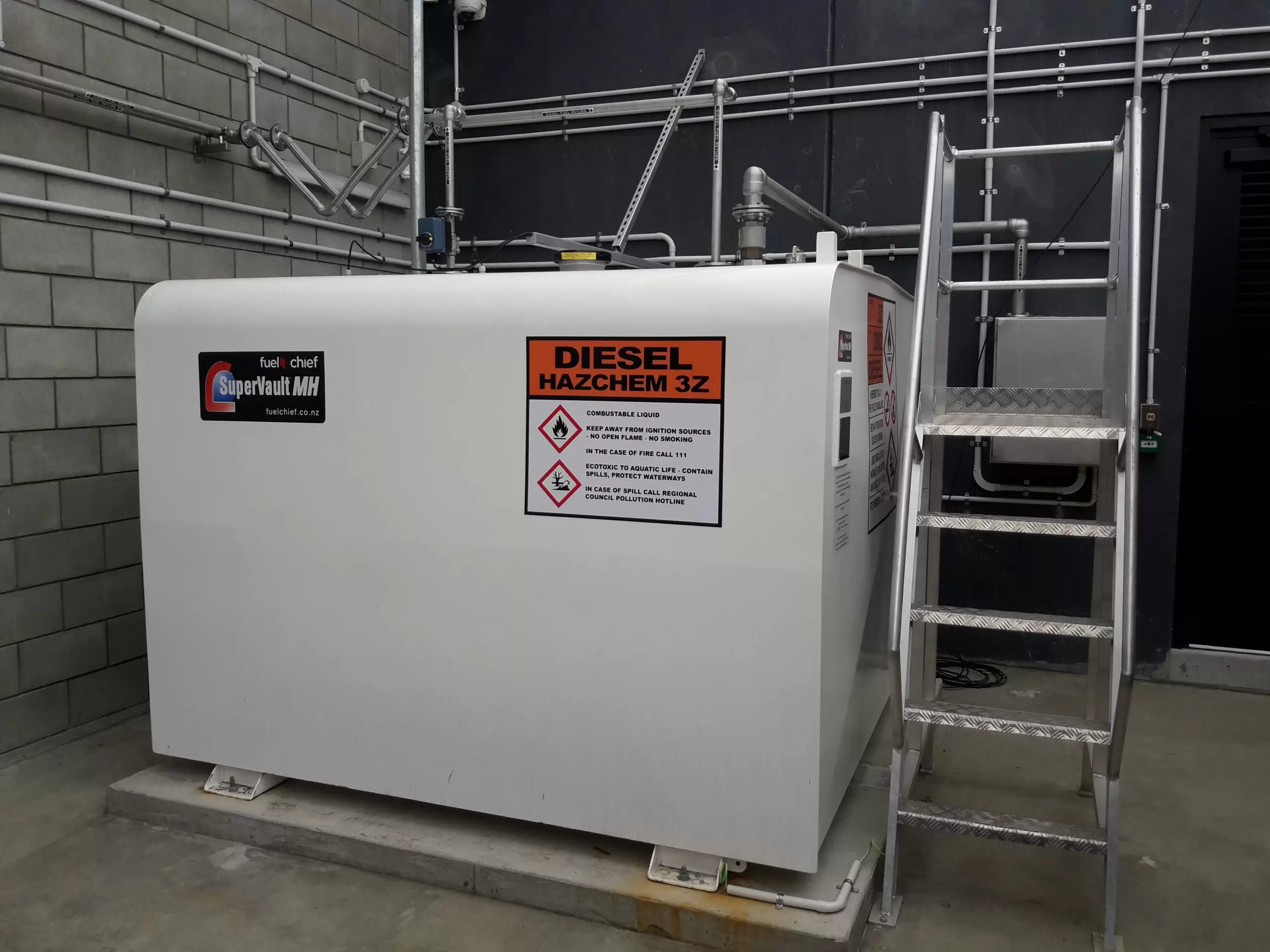

Airways: Critical Control Tower Upgrades

The Fuelchief SuperVault 4 hour fire rated fuel tank was custom made to ensure the critical environment of a aviation control tower was met.

NZ Bus Auckland Depot Upgrade

See how the SuperVault Cylindrical 4 hour fire rated tank ensured refuelling compliance for NZ Bus. Check out the latest case study.

Air New Zealand Jet Engine Testing Facility

Fuelchief supplied Air New Zealand, one of the most recognised global airlines in the world, a SuperVault for their new testing facility.

Christchurch Hospital

Chirstchurch Hospital, consultants needed a SuperVault tank to back up critical generators to ensure continual power in an outage.

Allied Petroleum iTank in Invercargill

The Fuelchief SuperVault 4 hour fire rated fuel tank was custom made to ensure the critical environment of a aviation control tower was met.

Downer Bitumen Plant Upgrade Project

Up at Port Whangarei Downer recently took delivery of a SuperVault SVR-4999 and also a DC100 Diesel tank – both supplied via Z Energy for Downers bitumen plant upgrade.

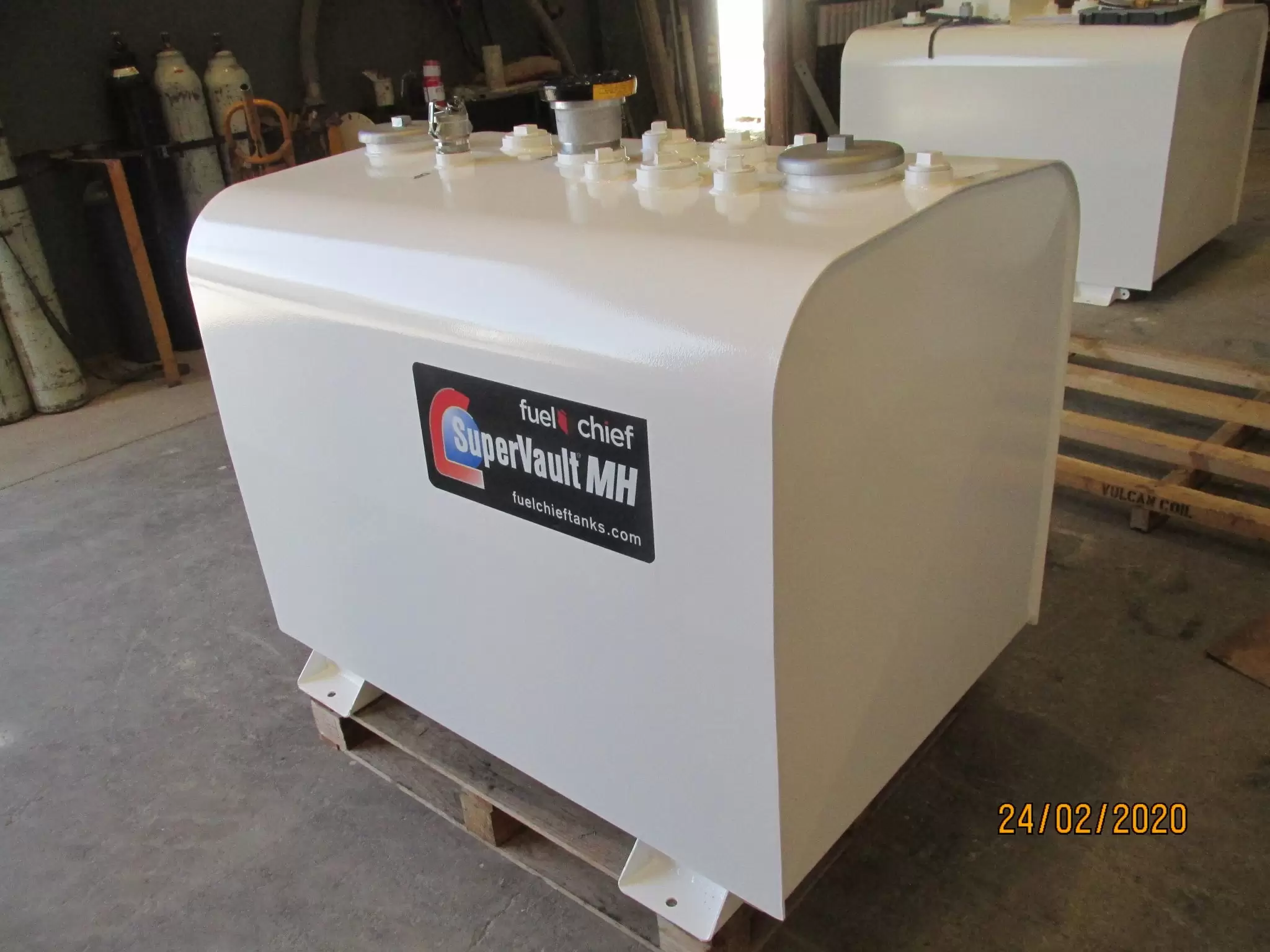

Citibank Gets a SuperVault

ECL Group were engaged by their client Citibank to supply and install a suitable diesel tank system to supply fuel to a large generator in a multi-storey building in downtown Auckland.

Terra Cat Praxis Generator Base Tanks

ECL Group were engaged by their client Citibank to supply and install a suitable diesel tank system to supply fuel to a large generator in a multi-storey building in downtown Auckland.

Air BP Queenstown Airport Project

Queenstown Airport is a pristine location with the importance of environmentally secure and safe storage of fuel. For Air BP the SuperVault’s have been providing this for several years and will continue to do so for many years to come.
